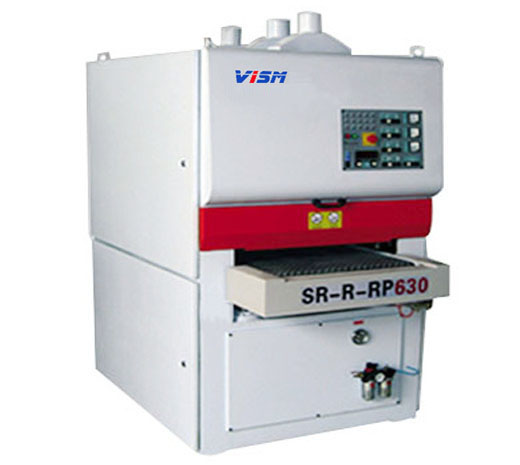

Name£ºSR-R-P 630 Triple heavy-duty wide belt sander sand shelf
Specification£º
Description£º

Features:
VISM has developed a new type of three sand sander frame. Before the roll is adjustable rollers for different sanding sheet. After the sand for the pad frame structure, is mainly used for fine sanding sheet. New types of abrasive belt structure, swing adjustment more convenient. The conveyor bed height adjustment models microcomputer controller settings, along with numerical display, the value set by the number of disk input, accurate, convenient and fast. Indicators of advanced machine tool technology, reasonable layout, novel structure, easy operation, furniture, bamboo flooring is one of the necessary equipment.

Selected configuration
1, using imported photoelectric control abrasive belt.
2, imported microcomputer control conveyor bed height.
3, broken belt, automatic belt deviation and power brakes.
4, variable speed feeding system.
5, fully imported Italian conveyor belt.
6, the new transfer belt pendulum system.
7, the new pressure roller boots.
8, the belt cleaning device.
9, cleaning brush halo.

¡ô Technical Parameters£º

Max Width(mm)

630

Thickness(mm)

3¡«80

Length(mm)

≥350

Precision(mm)

±0.05

Belt Power(KW)

15+11+7.5

Belt Speed(m/s)

16,18,18

Before the belt Size(mm)

650×1900

After the belt Size(mm)

650×1900

Power lifting System(KW)

0.25

Dimensions(mm)

1730×1640×1955mm

Weight(KG)

2650
