Name£ºStainless steel grinding machine
Specification£º
Description£º

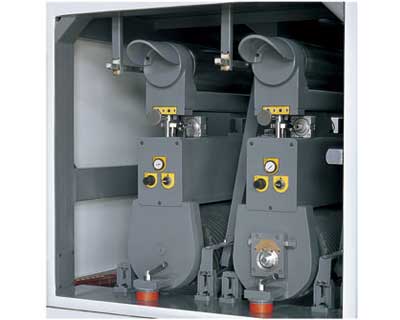

This series of sanding machine VISM latest technology development of new metal frame double sand surface grinding machines, mainly used for a variety of hard stainless steel, aluminum, copper and other metal materials ©p matte surface treatment, special design to meet the thinnest of 0.3mm board sanding requirements.
¡î unique feeding system.
¡î multiple binder system, reliable and practical guide plate finishing, completely solve the problem of thin plate warping.
¡î machine to fall off the system, to prevent a rebound plate.
¡î multiple security measures to make machine operation safer.
¡î the use of imported high-speed bearings, greatly improve equipment durability.

¡ô Specifications:
Max width(mm) <1300
Thickness(mm) 0.3 ~ 80
turning length(mm) ≥ 350
machining accuracy(mm) ± 0.03
Belt Motor Power(KW) 18.5 +18.5
belt speed(m / s) 18,18
front belt size (mm) 1330 × 2300
after the belt size (mm) 1330 × 2300
feeding system motor power (KW) 2.2
Dimensions(mm) 1890 × 1630 × 2300mm
Weight(KG) 5500
