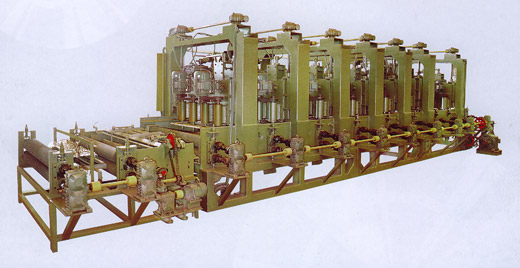

Name£º8K mirror polishing machine
Specification£º
Specification£º
Description£º
performance and features:
1, the equipment and production line for 0.4mm ~ 3.0mm2B, BA stainless steel sheet surface of the ground, to 8K mirror effect.
2, the use of conveyor rollers feed, electromagnetic governor motor worm gear box drive down delivery rollers, smooth transmission, to avoid slipping in the process sheet.
3, organic glass floor machine, floor to extend the service life.
4, the electric part of the rational design, the use of more secure.
5, the swing component materials by special treatment, a high degree of wear.
6, using the thickness of the sheet stack on the surface of grinding wheel head design, production efficiency
Technical Parameters:
| Specification | grinding head (MS) |
processing thickness (Mm) |
processing width (Mm) |
processing speed (M / min) |
line length (M) |
Total Power (Kw) |
| GM1250 ~ 40 | 40 | 0.4 ~ 3.0 | 1250 | 0.6 ~ 1.2 | 18.5 | ~ 67 |
| GM1250 ~ 48 | 48 | 0.4 ~ 3.0 | 1250 | 0.7 ~ 1.3 | 19.5 | ~ 79 |
| GM1250 ~ 56 | 56 | 0.4 ~ 3.0 | 1250 | 0.8 ~ 1.4 | 20.5 | ~ 90 |
| GM1250 ~ 64 | 64 | 0.4 ~ 3.0 | 1250 | 1.0 ~ 1.5 | 21.5 | ~ 101 |
| GM1500 ~ 40 | 40 | 0.4 ~ 3.0 | 1500 | 0.6 ~ 1.0 | 18.5 | ~ 67 |
| GM1500 ~ 48 | 48 | 0.4 ~ 3.0 | 1500 | 0.7 ~ 1.1 | 19.5 | ~ 79 |
| GM1500 ~ 56 | 56 | 0.4 ~ 3.0 | 1500 | 0.8 ~ 1.2 | 20.5 | ~ 90 |
