Specification£º
structure and performance characteristics:

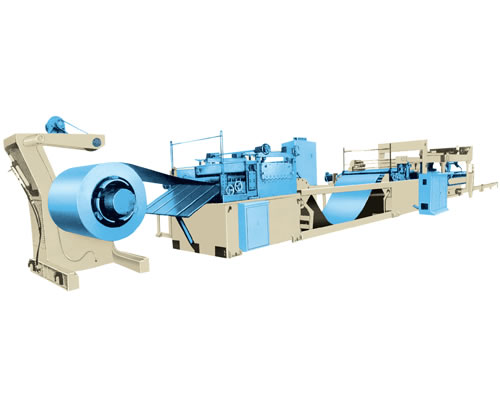

1) The production line is the cold-rolled steel coils, stainless steel coil, aluminum coil and other coil leveling cut into all kinds of cut-sheet.
2) The standard configuration consists of: coil car, uncoiler, pallets pressing device, limit devices ¢ñ, the host school level, movable bridge, limit devices ¢ò, cut to length machines, laminating equipment, shears, conveyor work units, pneumatic discharge rack, hydraulic lift, unloading table, hydraulic systems, electrical control system components.
3) The production line hydraulic system components, precision components used in Taiwan, cut to length system using the German company Lenze servo positioning system-wide control. With a high degree of automation, quality leveling, cutting and high precision, high efficiency, stable performance, convenient operation and maintenance features.
| Parameters | JL-1250 | JL-1600 | JLA-1250 | JLA-1600 | JLB-1600 | JLB-2000 | |
|---|---|---|---|---|---|---|---|
| Coil thickness | mm | 0.3-1.5 | 0.3-1.5 | 0.3-2 | 0.3-2 | 0.3-3 | 0.3-3 |
| processed width | mm | 800-1250 | 800-1600 | 800-1250 | 1000-1600 | 1000-1600 | 1000-2000 |
| cut length | mm | 10.0-9999 | 10.0-9999 | 10.0-9999 | 10.0-9999 | 10.0-9999 | 10.0-9999 |
| stacking length | mm | 300-4000 | 300-4000 | 300-4000 | 300-4000 | 300-4000 | 300-4000 |
| cut length accuracy of | mm | ± 0.3 | ± 0.3 | ± 0.3 | ± 0.3 | ± 0.5 | ± 0.5 |
| precision leveling | mm / m 2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 |
| strip speed | m / min | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
| may Coil weight | T | 10 | 10 | 10 | 10 | 20 | 20 |
